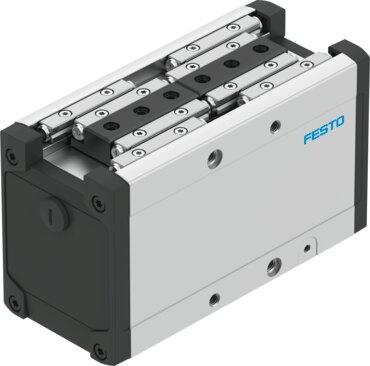

Reference imageConfirm configuration by manufacturer part number.
Festo
8117630
Parallel gripper HEPP-36-45-PN
The Festo part number 8117630 is an electrical industrial component featuring two parallel gripper jaws with a size of 36, a complete stroke of 45 mm, and a stroke per gripper jaw of 22.5 mm. Utilizing a toothed belt, ball screw structural design, and a roller guide, this electric gripper achieves a repetition accuracy of ±0.02 mm, a positioning speed of 40 mm/s per gripper finger, and a positioning acceleration of 1 m/s². Operation relies on an absolute single-turn magnetic rotor position sensor, motor encoder feedback, LED ready status indication, and interpolating mode via fieldbus with GSDML file configuration support in any mounting position. Metals with copper, zinc, or nickel by mass as the main constituent are excluded from use, with specific exceptions for steel nickel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors, and coils. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8117630
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8117630.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 36
- Complete stroke
- 45 mm
- Stroke per gripper jaw
- 22.5 mm
- Max. Gripper jaw clearance Sy
- 0.35 mm
- Repetition accuracy in ± mm
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Controller operating mode
- Interpolating mode via eldbus
- Gripper function
- Parallel
- Structural design
- Toothed belt | Electric gripper | With ball screw
- Guide
- Roller guide
- Position sensing
- Motor encoder
- Conguration support
- GSDML le
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Ready status indication
- LED
- Positioning speed per gripper nger
- 40 mm/s
- Positioning acceleration per gripper nger
- 1 m/s²
- Gripping speed per gripper nger
- 3 mm/s
- No. of MAC addresses
- 4
- Max. current consumption
- 3000 mA
- Max. load current consumption
- 2 A
- Logic max. current consumption
- 1 A
- Nominal operating voltage DC
- 24 V
- Nominal voltage, logic supply DC
- 24 V
- Nominal voltage, load supply DC
- 24 V
