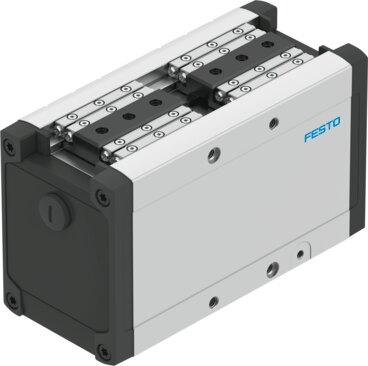

Name: Festo 8117631 Parallel gripper HEPP-28-30-PN
Brand: Festo

Parallel gripper HEPP-28-30-PN

The Festo part number 8117631 is an electrical parallel gripper featuring two jaws with a size of 28, a complete stroke of 30 mm, and a stroke per gripper jaw of 15 mm. This structural design incorporates a toothed belt, an electric gripper, a ball screw, and a roller guide, driven by an absolute single-turn magnetic motor encoder enabling a positioning speed of 40 mm/s and acceleration of 1 m/s^2. Featuring a repetition accuracy of plus or minus 0.04 mm, a maximum gripper jaw clearance of 0.35 mm, and an LED ready status indication, it operates via interpolating mode through fieldbus with GSDML file configuration support in any mounting position while excluding certain mass constituent metals. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8117631
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8117631.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 28
Complete stroke: 30 mm
Stroke per gripper jaw: 15 mm
Max. Gripper jaw clearance Sy: 0.35 mm
Repetition accuracy in ± mm: 0.04 mm
Number of gripper jaws: 2
Actuator system: Electrical
Mounting position: Any
Controller operating mode: Interpolating mode via eldbus
Gripper function: Parallel
Structural design: Toothed belt | Electric gripper | With ball screw
Guide: Roller guide
Position sensing: Motor encoder
Conguration support: GSDML le
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Ready status indication: LED
Positioning speed per gripper nger: 40 mm/s
Positioning acceleration per gripper nger: 1 m/s²
Gripping speed per gripper nger: 3 mm/s
No. of MAC addresses: 4
Max. current consumption: 3000 mA
Max. load current consumption: 2 A
Logic max. current consumption: 1 A
Nominal operating voltage DC: 24 V
Nominal voltage, logic supply DC: 24 V
Nominal voltage, load supply DC: 24 V
