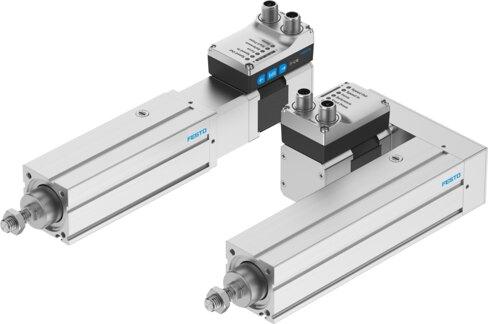

Reference imageConfirm configuration by manufacturer part number.
Festo
8118265
Electric cylinder unit EPCS-BS-45-
The Festo size 45 electric cylinder features an integrated actuator with a ball screw, plain bearing-guide, and an absolute single-turn magnetic rotor position sensor. Operating at a 100% duty cycle, this unit includes an integrated CMOS temperature sensor with analog output, LED display, user interface, and integrated end-position sensing. It achieves a stroke ranging from 25 mm to 300 mm, maximum speed between 0.07 m/s and 0.23 m/s, acceleration from 0.5 m/s² to 5 m/s², and a repetition accuracy of ±0.02 mm. Submit the exact part number, quantity, and application requirements to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8118265
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8118265.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 45
- Stroke
- 25 mm...300 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Screw diameter
- 10 mm
- Spindle pitch
- 3 mm/U...10 mm/U
- Mounting position
- Any
- Structural design
- Electric cylinder | With ball screw | With integrated actuator
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 0.5 m/s²...5 m/s²
- Max. speed
- 0.07 m/s...0.23 m/s
- Repetition accuracy
- ±0.02 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 3 A
- Parameterization interface
- IO-Link® | User interface
