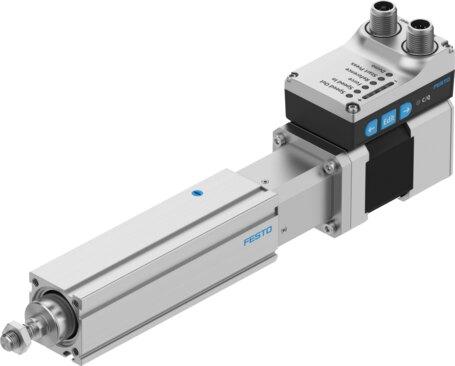

Name: Festo 8118267 Electric cylinder unit EPCS-BS-32-50-3P-A-ST-M-H1-PLK-AA
Brand: Festo

Electric cylinder unit EPCS-BS-32-50-3P-A-ST-M-H1-PLK-AA

The Festo 8118267 is an electric cylinder featuring a ball screw, integrated actuator, and plain bearing-guide with a size 32, 50 mm stroke, and 3 mm/U spindle pitch. It operates with a 100% duty cycle, delivering a maximum acceleration of 1.5 m/s², a maximum speed of 0.079 m/s, and a repetition accuracy of ±0.02 mm. Equipped with an absolute single-turn magnetic encoder, integrated end-position sensing, LED display, and an overtemperature shutdown via an integrated CMOS temperature sensor, this component supports any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8118267
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8118267.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 32
Stroke: 50 mm
Stroke reserve: 0 mm
Piston rod thread: M8
Screw diameter: 8 mm
Spindle pitch: 3 mm/U
Mounting position: Any
Structural design: Electric cylinder | With ball screw | With integrated actuator
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Temperature monitoring: Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 1.5 m/s²
Max. speed: 0.079 m/s
Repetition accuracy: ±0.02 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 3 A
Logic max. current consumption: 0.3 A
DC nominal voltage: 24 V
Nominal current: 3 A
Parameterization interface: IO-Link® | User interface

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8118267. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
