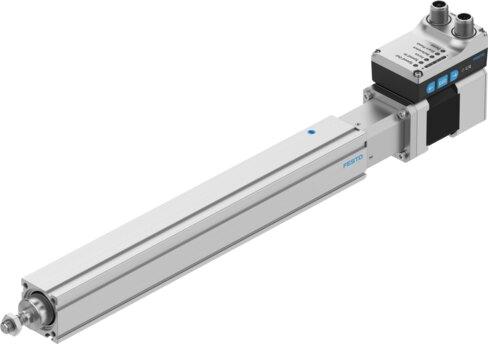

Name: Festo 8118274 Electric cylinder unit EPCS-BS-32-200-8P-A-ST-M-H1-PLK-AA
Brand: Festo

Electric cylinder unit EPCS-BS-32-200-8P-A-ST-M-H1-PLK-AA

The Festo part number 8118274 is an electric cylinder featuring an integrated actuator, ball screw spindle type with an 8 mm screw diameter and 8 mm/U spindle pitch, and a size 32 design with a 200 mm stroke and 0 mm stroke reserve. Equipped with a plain bearing-guide for torsion protection, an absolute single-turn magnetic rotor position sensor, and an integrated CMOS temperature sensor for over-temperature shutdown, this component operates at a 100% duty cycle with a maximum acceleration of 5 m/s², a maximum speed of 0.21 m/s, and a repetition accuracy of ±0.02 mm. It includes an M8 piston rod thread, LED display, user interface, configurable digital logic outputs, and integrated end-position sensing for mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8118274
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8118274.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 32
Stroke: 200 mm
Stroke reserve: 0 mm
Piston rod thread: M8
Screw diameter: 8 mm
Spindle pitch: 8 mm/U
Mounting position: Any
Structural design: Electric cylinder | With ball screw | With integrated actuator
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Temperature monitoring: Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 5 m/s²
Max. speed: 0.21 m/s
Repetition accuracy: ±0.02 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 3 A
Logic max. current consumption: 0.3 A
DC nominal voltage: 24 V
Nominal current: 3 A
Parameterization interface: IO-Link® | User interface
