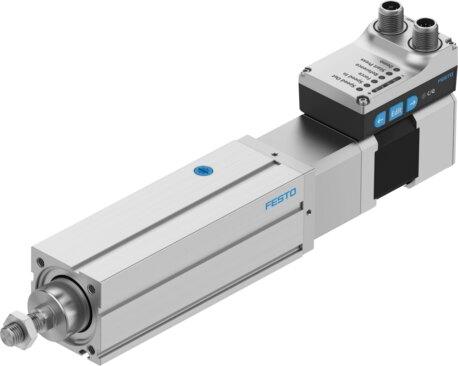

Reference imageConfirm configuration by manufacturer part number.
Festo
8118281
Electric cylinder unit EPCS-BS-45-50-10P-A-ST-M-H1-PLK-AA
The Festo 8118281 is an electric cylinder featuring a size 45 structural design with a ball screw, integrated actuator, and plain bearing-guide for torsion protection. This unit delivers a 50 mm stroke with zero stroke reserve, an M10x1.25 piston rod thread, a 10 mm screw diameter, and a 10 mm/U spindle pitch for any mounting position. Operational parameters include a maximum acceleration of 5 m/s², a maximum speed of 0.23 m/s, a repetition accuracy of ±0.02 mm, and a 100% duty cycle, supported by an absolute single-turn magnetic encoder and a CMOS temperature sensor for overtemperature shutdown. Additional features encompass an integrated user interface, LED display, and configurable non-galvanically isolated digital logic outputs with integrated end-position sensing. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8118281
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8118281.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 45
- Stroke
- 50 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Screw diameter
- 10 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Structural design
- Electric cylinder | With ball screw | With integrated actuator
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 5 m/s²
- Max. speed
- 0.23 m/s
- Repetition accuracy
- ±0.02 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 3 A
- Parameterization interface
- IO-Link® | User interface
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8118281. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
