8118283

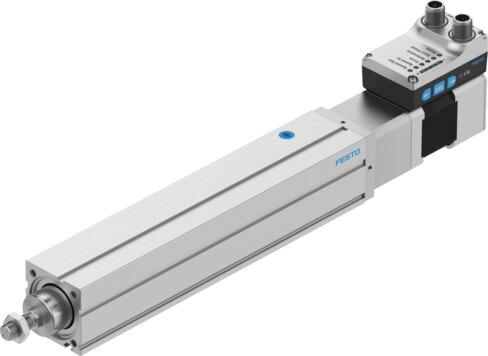

Name: Festo 8118283 Electric cylinder unit EPCS-BS-45-150-10P-A-ST-M-H1-PLK-AA
Brand: Festo

Electric cylinder unit EPCS-BS-45-150-10P-A-ST-M-H1-PLK-AA

The Festo part number 8118283 is an electric cylinder featuring a ball screw structural design with an integrated actuator, size 45, and a 150 mm stroke with 0 mm stroke reserve. This component incorporates a plain bearing-guide for protection against torsion, a 10 mm screw diameter, a 10 mm/U spindle pitch, and an M10x1.25 piston rod thread, supporting any mounting position at a 100% duty cycle. Operational parameters include a maximum speed of 0.23 m/s, a maximum acceleration of 5 m/s², and a repetition accuracy of ±0.02 mm, alongside an absolute single-turn magnetic encoder, configurable non-galvanically isolated digital logic outputs, LED display, integrated end-position sensing, user interface, and over-temperature shutdown via an integrated precise CMOS temperature sensor with an analogue output. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8118283
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8118283.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 45
Stroke: 150 mm
Stroke reserve: 0 mm
Piston rod thread: M10x1.25
Screw diameter: 10 mm
Spindle pitch: 10 mm/U
Mounting position: Any
Structural design: Electric cylinder | With ball screw | With integrated actuator
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Temperature monitoring: Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 5 m/s²
Max. speed: 0.23 m/s
Repetition accuracy: ±0.02 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 3 A
Logic max. current consumption: 0.3 A
DC nominal voltage: 24 V
Nominal current: 3 A
Parameterization interface: IO-Link® | User interface

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8118283. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
