Festo
8118288

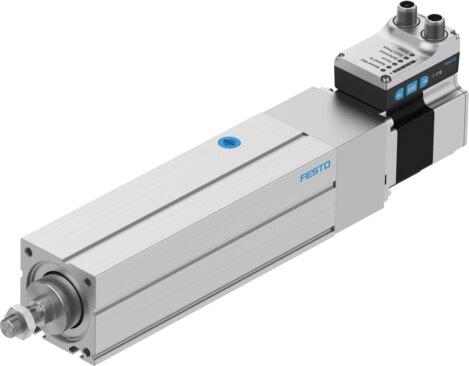

Electric cylinder unit EPCS-BS-60-100-5P-A-ST-M-H1-PLK-AA
The Festo 8118288 is an electric cylinder featuring a size 60 structural design, an integrated ball screw actuator with a 5 mm/U spindle pitch, and a 100 mm stroke with 0 mm stroke reserve. Equipped with an M12x1.25 piston rod thread, a 12 mm screw diameter, a plain bearing-guide for torsion protection, an absolute single-turn magnetic rotor position sensor, and an integrated CMOS temperature sensor with an analogue output, this unit operates at a 100% duty cycle with a maximum speed of 0.09 m/s, a maximum acceleration of 1.5 m/s², and a repetition accuracy of ±0.02 mm in any mounting position. Additional functional features include a user interface, LED display, integrated end-position sensing, and configurable digital logic outputs without galvanic isolation that support over-temperature shutdown. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8118288
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8118288.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Stroke
- 100 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M12x1.25
- Screw diameter
- 12 mm
- Spindle pitch
- 5 mm/U
- Mounting position
- Any
- Structural design
- Electric cylinder | With ball screw | With integrated actuator
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 1.5 m/s²
- Max. speed
- 0.09 m/s
- Repetition accuracy
- ±0.02 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link® | User interface
