Name: Festo 8118292 Electric cylinder unit EPCS-BS-60-300-5P-A-ST-M-H1-PLK-AA
Brand: Festo

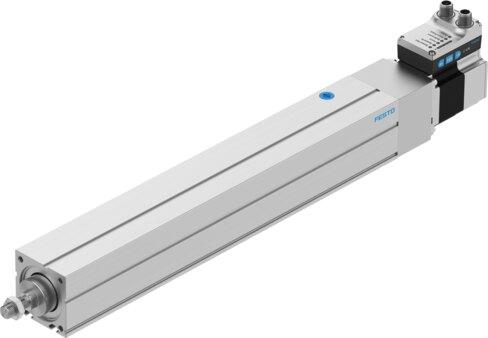

Electric cylinder unit EPCS-BS-60-300-5P-A-ST-M-H1-PLK-AA

The Festo part number 8118292 is an electric cylinder featuring an integrated actuator, a ball screw structural design with a 12 mm screw diameter, and a 5 mm/U spindle pitch. Engineered with a size 60 format, a 300 mm stroke, and a plain bearing-guide for torsion protection, this unit achieves a repetition accuracy of ±0.02 mm, a maximum speed of 0.09 m/s, and a maximum acceleration of 1.5 m/s² at a 100% duty cycle. It incorporates an absolute single-turn magnetic rotor position sensor, an integrated CMOS temperature sensor for overtemperature shutdown, configurable digital logic outputs, an LED display with a user interface, and an M12x1.25 piston rod thread for installation in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8118292
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8118292.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 60
Stroke: 300 mm
Stroke reserve: 0 mm
Piston rod thread: M12x1.25
Screw diameter: 12 mm
Spindle pitch: 5 mm/U
Mounting position: Any
Structural design: Electric cylinder | With ball screw | With integrated actuator
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Temperature monitoring: Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 1.5 m/s²
Max. speed: 0.09 m/s
Repetition accuracy: ±0.02 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 5.3 A
Logic max. current consumption: 0.3 A
DC nominal voltage: 24 V
Nominal current: 5.3 A
Parameterization interface: IO-Link® | User interface
