Festo
8118301

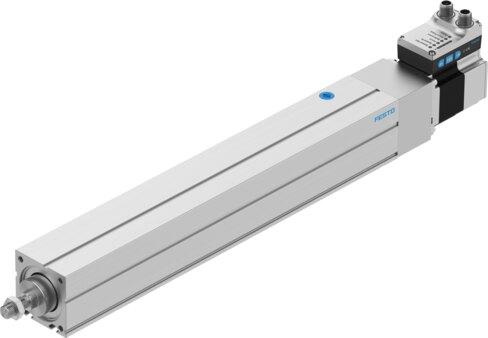

Electric cylinder unit EPCS-BS-60-300-12P-A-ST-M-H1-PLK-AA
The Festo 8118301 is an electric cylinder featuring a structural design with an integrated actuator and ball screw, providing a size 60 build with a 300 mm stroke and 0 mm stroke reserve. This component utilizes an M12x1.25 piston rod thread, a 12 mm screw diameter, and a 12 mm/U spindle pitch, operating in any mounting position with a plain bearing-guide for torsion protection. Built with a 100% duty cycle, it achieves a maximum acceleration of 5 m/s², a maximum speed of 0.22 m/s, and a repetition accuracy of ±0.02 mm. Integrated features include an absolute single-turn magnetic rotor position sensor, LED display, user interface, integrated end-position sensing, and temperature monitoring via an integrated precise CMOS temperature sensor with analog output that initiates a shutdown in the event of over temperature, alongside configurable, non-galvanically isolated digital logic outputs. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8118301
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8118301.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Stroke
- 300 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M12x1.25
- Screw diameter
- 12 mm
- Spindle pitch
- 12 mm/U
- Mounting position
- Any
- Structural design
- Electric cylinder | With ball screw | With integrated actuator
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 5 m/s²
- Max. speed
- 0.22 m/s
- Repetition accuracy
- ±0.02 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link® | User interface
