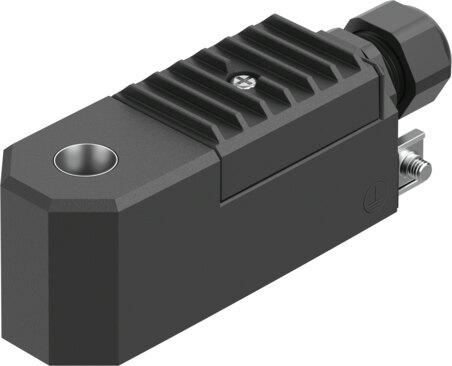

Name: Festo 8118325 Solenoid coil VACC-S13-18-K4-2U-NM4ME
Brand: Festo

Solenoid coil VACC-S13-18-K4-2U-NM4ME

This Festo industrial component features electrical actuation with a 100% duty cycle and Class H insulation, operating on 110 V DC at 1.8 W or 110 V AC at 40/65 Hz with 1.8 VA power. It provides IP65 protection, M20x1.5 cable entry via a terminal box, and carries INMETRO DNV 17.0042X certification for Zone 1 and Zone 21 hazardous locations with a product weight of 330 g. RoHS compliant and conforming to VDMA24364 Zone III LABS standards, the unit supports any mounting position and permits voltage fluctuations of -15% / +10% across explosive ambient temperature ranges. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8118325
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8118325.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Switching position indication: No
Duty cycle: 100%
Insulation class: H
Coil characteristics: 110 V DC: 1.8 W | 110 V AC: 40/65 Hz, power 1.8 VA
Permissible voltage uctuations: -15% / +10%
Explosion protection certication outside the EU: EPL Db (BR) | EPL Gb (BR)
Explosion prevention and protection: Zone 1 (BR) | Zone 21 (BR)
Certicate issuing authority: INMETRO DNV 17.0042X
Type of ignition protection for gas: Ex eb mb IIC T6, T5, T4 Gb
Type of (ignition) protection for dust: Ex tb IIIC T85°C,T95°C, T130°C Db
Explosive ambient temperature: T4, T130°C: -30°C <= Ta <= +60°C | T5, T95°C: -30°C <= Ta <= +60°C | T6, T85°C: -30°C <= Ta <= +50°C
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP65
Product weight: 330 g
Electrical connection: Terminal box, cable entry thread M20x1.5
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8118325. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
