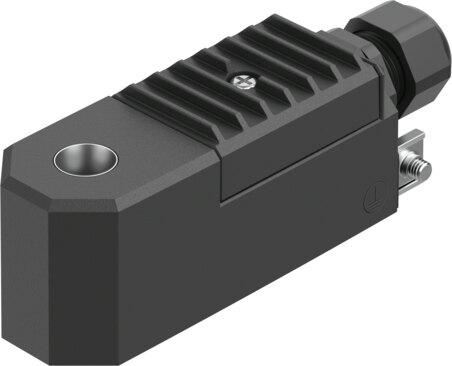

Reference imageConfirm configuration by manufacturer part number.
Festo
8118329
Solenoid coil VACC-S13-18-K4-1U-NE4ME
The Festo part number 8118329 is an electrical industrial component weighing 330 g with a 100% duty cycle and Class H insulation. It features dual 24 V DC (1.8 W) and 24 V AC (40/65 Hz, 1.8 VA) coil characteristics with permissible voltage fluctuations of -15% / +10%, supporting any mounting position and offering IP65 protection via an M20x1.5 terminal box cable entry. Certified for Zone 1 and Zone 21 explosive environments (GYJ23.1170X) with Ex eb mb IIC and Ex tb IIIC ignition protection, it conforms to VDMA24364 Zone III LABS and RoHS material requirements. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8118329
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8118329.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 24 V DC: 1.8 W | 24 V AC: 40/65 Hz, power 1.8 VA
- Permissible voltage uctuations
- -15% / +10%
- Explosion protection certication outside the EU
- EPL Db (CN) | EPL Gb (CN)
- Explosion prevention and protection
- Zone 1 (CN) | Zone 21 (CN)
- Certicate issuing authority
- GYJ23.1170X
- Type of ignition protection for gas
- Ex eb mb IIC T6… T4 Gb
- Type of (ignition) protection for dust
- Ex tb IIIC T85°C… T130°C Db
- Explosive ambient temperature
- T4, T130°C: -30°C <= Ta <= +60°C | T5, T95°C: -30°C <= Ta <= +60°C | T6, T85°C: -30°C <= Ta <= +50°C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Product weight
- 330 g
- Electrical connection
- Terminal box, cable entry thread M20x1.5
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8118329. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
