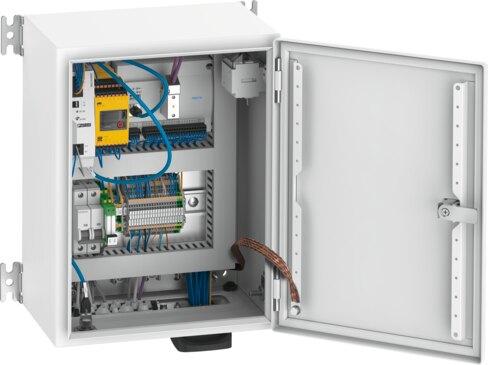

Name: Festo 8118454 Control system CMCB-D1-CC-S1
Brand: Festo

Control system CMCB-D1-CC-S1

The Festo 8118454 is an industrial control cabinet featuring an integrated safety relay unit rated for Category 3, performance level d, with dimensions of 220 mm x 350 mm x 440 mm and an IP54 degree of protection for interior ambient conditions. It operates on a nominal AC voltage of 230 V at 50 Hz to 60 Hz across TT, TN, and IT mains types, consuming a maximum of 1.1 A with an internal electronic fuse providing short-circuit protection. This component conforms to the EU EMC and low voltage directives, exhibits a corrosion resistance class of CRC 0, and requires radio interference suppression measures when deployed in residential areas. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8118454
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8118454.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Application note: The product is suitable for industrial purposes only. Radio interference | suppression measures may be required in residential areas.
Structural design: Control cabinet | Integrated safety relay unit
Performance Level (PL): Category 3, performance level d
Dimensions W x L x H: 220 mm x 350 mm x 440 mm
Fuse protection (short circuit): Internal electronic fuse
Max. current consumption: 1.1 A
Current consumption of the secondary circuit: 5 A
Max. power supply: 6 A
Nominal operating voltage AC: 230 V
Mains types: TT | TN | IT
Mains frequency: 50 Hz...60 Hz
Contamination level: 2
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
Relative air humidity: Max. 50% at 40°C
Protection against direct and indirect contact: PELV | Grounding of all exposed conductive parts
Degree of protection: IP54
Ambient conditions: Interior
Ambient temperature: 5 °C...40 °C
Nominal altitude of use above sea level: 1000 m NN
Product weight: 15.3 kg
Electrical connection: Spring-loaded terminal | Push-in
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8118454. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
