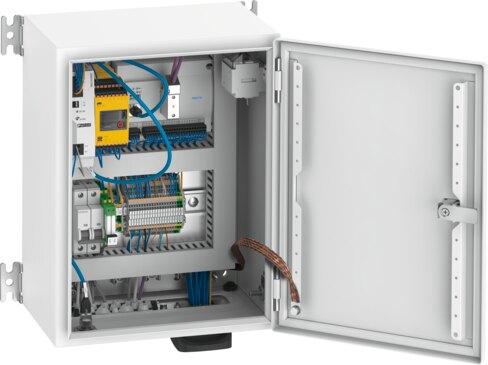

Name: Festo 8118456 Control system CMCB-D1-CC-S0
Brand: Festo

Control system CMCB-D1-CC-S0

The Festo part number 8118456 is an industrial control cabinet component featuring dimensions of 220 mm x 350 mm x 440 mm, a nominal operating voltage of 230 V AC, and a mains frequency of 50 Hz to 60 Hz across TT, TN, and IT mains types. It operates with a max power supply of 6 A, max current consumption of 1.1 A, secondary circuit current consumption of 5 A, and internal electronic short-circuit fuse protection, all housed within an IP54-rated interior enclosure with a CRC 0 corrosion resistance class. This unit achieves Category B, performance level b, carries CE markings per EU EMC and low voltage directives, and complies with VDMA24364 Zone III LABS conformity for industrial purposes only. Please submit the exact part number, quantity, and application requirements to request a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8118456
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8118456.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Application note: The product is suitable for industrial purposes only. Radio interference | suppression measures may be required in residential areas.
Structural design: Control cabinet
Performance Level (PL): Category B, performance level b
Dimensions W x L x H: 220 mm x 350 mm x 440 mm
Fuse protection (short circuit): Internal electronic fuse
Max. current consumption: 1.1 A
Current consumption of the secondary circuit: 5 A
Max. power supply: 6 A
Nominal operating voltage AC: 230 V
Mains types: TT | TN | IT
Mains frequency: 50 Hz...60 Hz
Contamination level: 2
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
Relative air humidity: Max. 50% at 40°C
Protection against direct and indirect contact: PELV | Grounding of all exposed conductive parts
Degree of protection: IP54
Ambient conditions: Interior
Ambient temperature: 5 °C...40 °C
Nominal altitude of use above sea level: 1000 m NN
Product weight: 15 kg
Electrical connection: Spring-loaded terminal | Push-in
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8118456. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
