Festo
8118457

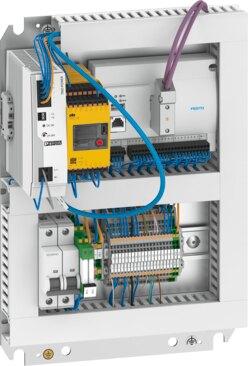

Control system CMCB-D1-C-S0
Engineered with a mounting plate structural design measuring 135 mm x 254 mm x 375 mm, this Festo industrial component operates on a nominal AC voltage of 230 V across TT, TN, and IT mains types at 50 Hz to 60 Hz. The unit features an internal electronic fuse providing short-circuit protection, a maximum current consumption of 1.1 A, a secondary circuit current consumption of 5 A, and a maximum power supply of 6 A with Category B, performance level b capabilities. Designed exclusively for interior industrial applications where radio interference suppression measures may be required in residential areas, it complies with the EU EMC and low voltage directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8118457
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8118457.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Application note
- The product is suitable for industrial purposes only. Radio interference | suppression measures may be required in residential areas.
- Structural design
- Mounting plate
- Performance Level (PL)
- Category B, performance level b
- Dimensions W x L x H
- 135 mm x 254 mm x 375 mm
- Fuse protection (short circuit)
- Internal electronic fuse
- Max. current consumption
- 1.1 A
- Current consumption of the secondary circuit
- 5 A
- Max. power supply
- 6 A
- Nominal operating voltage AC
- 230 V
- Mains types
- TT | TN | IT
- Mains frequency
- 50 Hz...60 Hz
- Contamination level
- 2
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- Max. 50% at 40°C
- Protection against direct and indirect contact
- PELV | Grounding of all exposed conductive parts
- Degree of protection
- IP20
- Ambient conditions
- Interior
- Ambient temperature
- 5 °C...40 °C
- Nominal altitude of use above sea level
- 1000 m NN
- Product weight
- 4.2 kg
- Electrical connection
- Spring-loaded terminal | Push-in
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8118457. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
