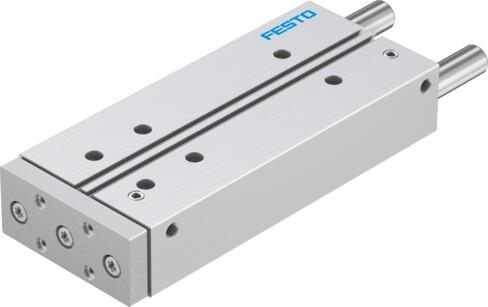

Reference imageConfirm configuration by manufacturer part number.
Festo
8118890
Guided drive DFM-32-200-P-A-GF-F1A
The Festo part number 8118890 is a double-acting industrial drive unit featuring a 32 mm piston diameter, a 200 mm stroke, and a yoke drive unit operating mode with a 50 mm distance from the center of gravity of the payload to the yoke plate. This structural design incorporates a plain-bearing guide, elastic cushioning rings or pads at both ends, and position sensing via proximity switch, operating at pressures from 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and a maximum speed of 0.8 m/s with compressed air as per ISO 8573-1:2010 [7:4:4]. Built with a corrosion resistance class of CRC 0 and LABS conformity according to VDMA24364-B1/B2-L, the component functions within an ambient temperature range of -20 °C to 80 °C and is suitable for the production of Li-ion batteries with reduced Cu/Zn/Ni values and cleanroom class 6 applications according to ISO 14644-1. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8118890
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8118890.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 200 mm
- Piston diameter
- 32 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.4 Nm
- Max. force Fy
- 1227 N
- Max. force Fy static
- 1227 N
- Max. force Fz
- 1227 N
- Max. force Fz static
- 1227 N
- Max. torque Mx
- 47.84 Nm
- Max. static moment Mx
- 47.84 Nm
- Max. torque My
- 47.84 Nm
