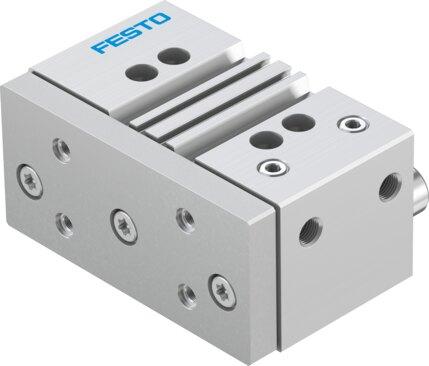

Reference imageConfirm configuration by manufacturer part number.
Festo
8118947
Guided drive DFM-63-25-P-A-GF-F1A
This Festo industrial component features a 63 mm piston diameter, a 25 mm stroke, and a yoke drive unit operating mode with a 50 mm distance from the payload center of gravity to the yoke plate. It utilizes a plain-bearing guide, elastic cushioning rings or pads at both ends, and enables position sensing via proximity switch for double-acting compressed air operation within a 1 bar to 10 bar pressure range. Designed for any mounting position, the unit operates at a maximum speed of 0.6 m/s across ambient temperatures from -20 °C to 80 °C, meeting ISO 14644-1 cleanroom Class 6 and VDMA24364-B1/B2-L LABS conformity standards with copper, zinc, and nickel restrictions. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8118947
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8118947.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 25 mm
- Piston diameter
- 63 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Max. speed
- 0.6 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.3 Nm
- Max. force Fy
- 1533 N
- Max. force Fy static
- 1533 N
- Max. force Fz
- 1533 N
- Max. force Fz static
- 1533 N
- Max. torque Mx
- 95.83 Nm
- Max. static moment Mx
- 95.83 Nm
- Max. torque My
- 38.33 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8118947. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
