Festo
8119108

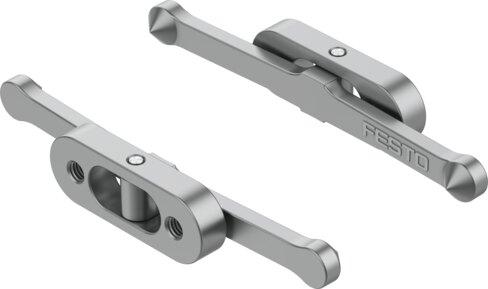

Gripper jaws DHAS-GG-B18-16-A1
The Festo 8119108 is a 16 mm industrial component designed for microwell plates featuring an any mounting position and M3 internal thread mounting. Built with high-alloy stainless steel gripper jaws and spring steel cylindrical pins, it offers CRC 4 particularly high corrosion stress resistance, VDMA24364-B2-L LABS conformity, RoHS compliance, and vibration and shock resistance meeting severity level 2 standards. This 24.4 g assembly operates in ambient temperatures from 0 °C to 40 °C, relative air humidity up to 100%, and storage temperatures from -20 °C to 70 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8119108
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8119108.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16 mm
- Mounting position
- Any
- Design
- For microwell plates
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 100%
- Ambient temperature
- 0 °C...40 °C
- Product weight
- 24.4 g
- Type of mounting
- With internal thread M3
- Note on materials
- RoHS compliant
- Gripper jaw material
- high-alloy stainless steel
- Cylindrical pin material
- Spring steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8119108. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
