Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8119112

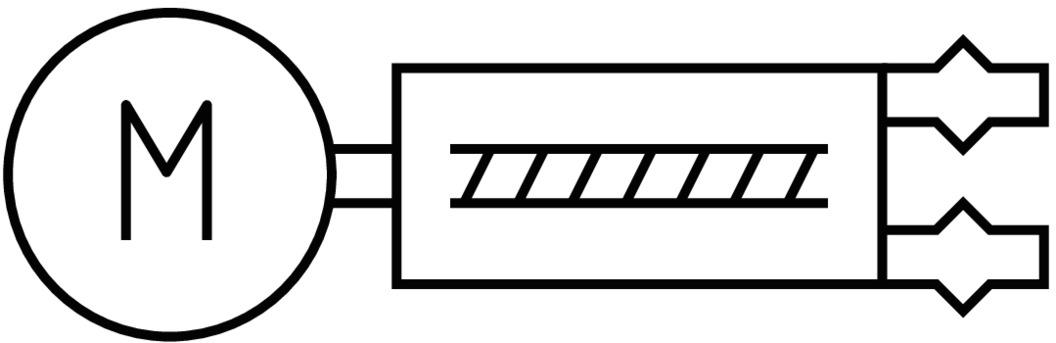

Parallel gripper EHPS-20-A-RA1
The Festo 8119112 is an electric parallel gripper featuring two gripper jaws driven by a DC servo motor via a worm gear, gear rack and pinion, and T-shape structural design with a sliding guide. Operating with a size of 20, a 13 mm stroke per gripper jaw, and a maximum cycle rate of 0.7 Hz, this component delivers a pneumatic gripper repetition accuracy of 0.01 mm, a maximum interchangeability of 0.2 mm, and a maximum current consumption of 2 A. Additional verified attributes include a maximum mass of 150 g per external gripper finger, 0.3 deg maximum gripper jaw angular play ax and ay, 0.05 mm maximum gripper jaw backlash Sz, 0.2 mm rotational symmetry, position sensing for proximity sensors, a latching switch, an LED ready status indication, and conformity to IEC 61010-1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8119112
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8119112.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Stroke per gripper jaw
- 13 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.3 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.01 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Gripper function
- Parallel
- Structural design
- Worm gear | T-shape | Gear rack/pinion | Electric gripper
- Conforms to standard
- IEC 61010-1
- Guide
- Sliding guide
- Position sensing
- For proximity sensor
- Motor type
- DC servo motor
- Control elements
- Latching switch
- Ready status indication
- LED
- Max. cycle rate
- 0.7 Hz
- Max. mass per external gripper finger
- 150 g
- Max. current consumption
- 2 A
- Nominal operating voltage DC
- 24 V
- Permissible voltage fluctuations
- +/- 10 %
- Certification
- RCM compliance mark
- KC characters
- KC EMC
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Explosion protection certification outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (UKEX) | Zone 21 (UKEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8119112. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
