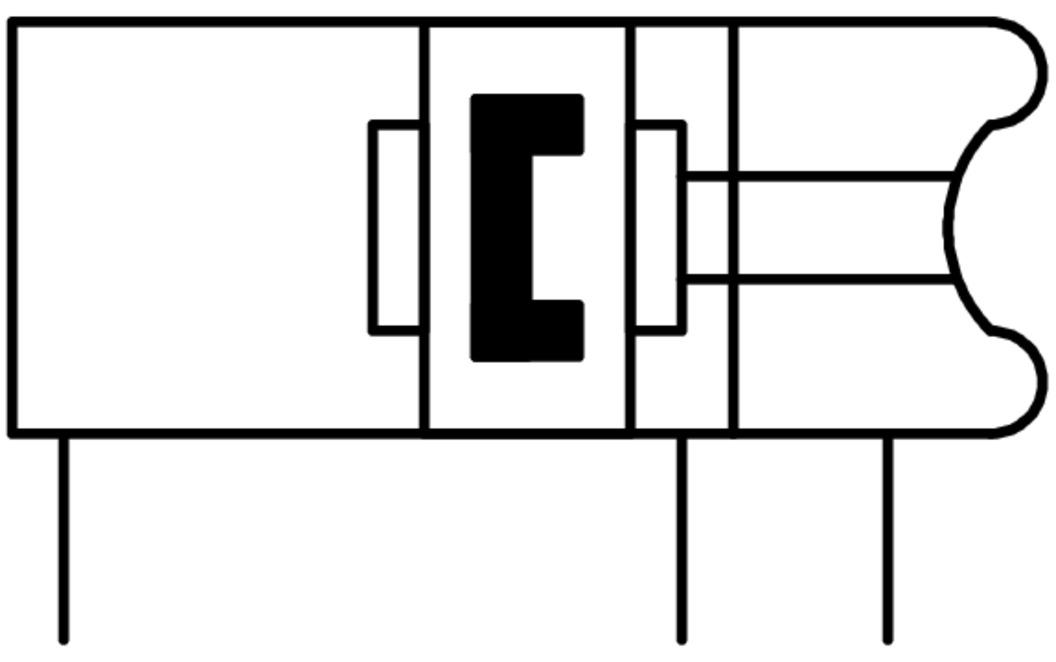

Reference imageConfirm configuration by manufacturer part number.
Festo
8119114
Adaptive shape gripper DHEF-20-A-RA1
The Festo size 20 pneumatic industrial component, part number 8119114, features a standard shaped handle cap version with a 66 mm stroke and an adaptive gripper function designed for a minimum gripping diameter of 12 mm and a maximum of 38 mm. Operating on compressed air as per ISO 8573-1:2010 [7:4:4] without oil lubrication, this double-acting unit utilizes an inverting cap structural design with positively driven motion sequence, a basic guide, and position sensing for a proximity sensor. It functions within an actuator operating pressure of 1 bar to 8 bar and a cap operating pressure of 0.07 bar to 0.1 bar, achieving a maximum operating frequency of 1 Hz along with advancing and retracting times of 270 ms and 290 ms respectively. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8119114
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8119114.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Shaped handle cap version
- Standard
- Stroke
- 66 mm
- Min. diameter to be gripped
- 12 mm
- Max. diameter to be gripped
- 38 mm
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Adaptive
- Structural design
- Inverting cap | Positively driven motion sequence
- Guide
- Basic guide
- Position sensing
- For proximity sensor
- Operating pressure of actuator
- 1 bar...8 bar
- Operating pressure of cap
- 0.07 bar...0.1 bar
- Burst pressure of cap
- 0.3 bar
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Retracting time
- 290 ms
- Advancing time
- 270 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Ambient temperature
- 0 °C...60 °C
- Mass moment of inertia
- 1.29 kgcm²
- Guide value for payload
- 1 kg
- Product weight
- 475 g
- Type of mounting
- as per ISO 9409
- Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Cap material
- VMQ (silicone)
- Housing material
- Aluminum, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8119114. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
