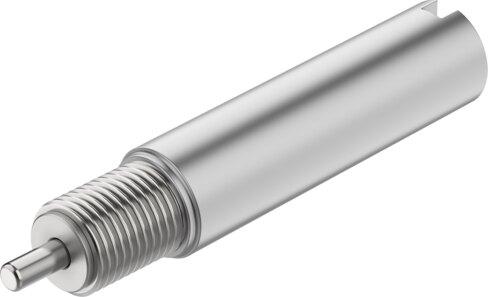

Name: Festo 8119982 Shock absorber DYSS-G8-4-4-Y1F-F1A-G2
Brand: Festo

Shock absorber DYSS-G8-4-4-Y1F-F1A-G2

This Festo industrial component, part number 8119982, is a single-acting, pushing-mode device featuring a size 4 designation and a 4 mm stroke. It incorporates self-adjusting cushioning with a 4 mm cushioning length, supporting a maximum impact velocity of 1 m/s, a maximum stop force of 100 N, and a maximum energy absorption of 0.8 J per stroke. The unit operates within an ambient temperature range of -10 °C to 80 °C, exhibits a corrosion resistance class of 2 for moderate stress, and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8119982
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8119982.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 4
Stroke: 4 mm
Cushioning: Self-adjusting
Mounting position: Any
Position sensing: None
Max. impact velocity: 1 m/s
Reset time at room temperature: 0.2 s
Reset time at min. ambient temperature: 1 s
Mode of operation: Pushing | Single-acting
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: -10 °C...80 °C
Cushioning length: 4 mm
Max. stop force: 100 N
Max. tightening torque: 0.8 Nm
Max. energy absorption per stroke: 0.8 J
Max. energy absorption per hour: 5500 J
Max. residual energy: 0.006 J
Resetting force: 0.7 N
Min. insertion force: 4.5 N
Product weight: 10.2 g
Load range: 1.7 kg
Type of mounting: With threaded sleeve
Note on materials: RoHS compliant
Seals material: NBR
Housing material: High-alloy steel
Piston rod material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8119982. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
