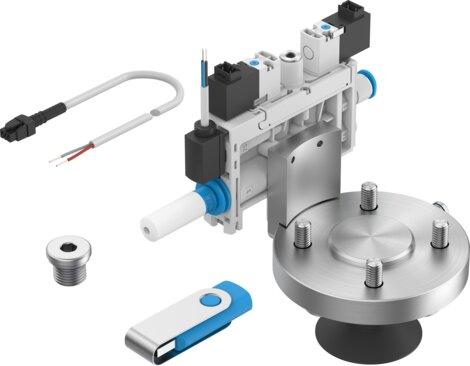

Name: Festo 8121043 Robot kit suction gripper OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3-RA1
Brand: Festo

Robot kit suction gripper OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3-RA1

The Festo part number 8121043 is an industrial component featuring a 0.95 mm Laval nozzle nominal width and high vacuum ejector characteristics, achieving a maximum vacuum of 92 %. This unit includes integrated functions such as an electric ejector pulse, flow control valve, pressure transmitter, electric on-off valve, filter, and open muffler, along with a piezoresistive pressure sensor for threshold value comparison and fixed hysteresis switching. Operating within a pressure range of 0.2 MPa to 0.7 MPa (2 bar to 7 bar) on compressed air as per ISO 8573-1:2010 [7:4:4], the 300 g device operates on 24 V DC (1.0 W) with a DC operating voltage range of 21.6 V to 26.4 V and delivers a 0 - 10 V analog output. The delivery scope comprises an adapter plate, distance piece, Velcro roll, USB stick with URCap, vacuum generator, suction cup with connection, two connecting cables, five blanking plugs, and six socket head screws. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8121043
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8121043.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width of Laval nozzle: 0.95 mm
Ejector characteristics: High vacuum
Integrated function: Ejector pulse, electric | Flow control valve | Pressure transmitter | Electric on-oﬀ valve | Filter | Muﬄer open
Scope of delivery: 1x adapter plate | 1x distance piece | 1x Velcro® roll | 1x USB stick with URCap | 1x vacuum generator | 1x suction cup with connection | 2x connecting cable | 5x blanking plugs | 6x socket head screws
Switching element function: N.O. contact
Switching function: Threshold value comparator | Threshold value with xed hysteresis
Valve function: Closed
Method of measurement: Piezoresistive pressure sensor
Operating pressure: 0.2 MPa...0.7 MPa | 2 bar...7 bar
Max. vacuum: 92 %
Analog output: 0 - 10 V
DC operating voltage range: 21.6 V...26.4 V
Coil characteristics: 24 V DC: 1.0 W
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: 0 °C...50 °C
Product weight: 300 g
DC sensor operating voltage range: 18 V...30 V
Pressure measuring range: -10 kPa...0 kPa
