Festo
8122268

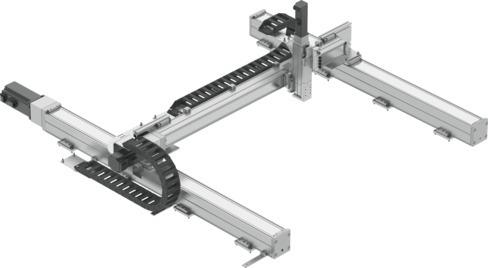

3-dimensional gantry YXCR-1-B
The Festo 8122268 is a space portal system structural design featuring electric and pneumatic actuator modules configured for horizontal mounting positions with a 100% duty cycle. This component requires a mounting surface flatness of 0.1 mm/m and incorporates an anodized aluminum adapter plate, high-alloy stainless steel mounting bracket, and PA-reinforced energy chain while meeting VDMA24364 Zone III LABS conformity and RoHS material directives. Operating within an ambient temperature range of 5 °C to 45 °C, relative air humidity of 0 to 90%, and storage temperatures from -20 °C to 60 °C, the unit features an IP40 degree of protection and a maintenance interval of 2500 km. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8122268
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8122268.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Required atness of mounting surfaces
- 0.1 mm/m
- Mounting position
- Horizontal
- Structural design
- Space portal system | with electric and pneumatic actuator modules
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...45 °C
- Maintenance interval
- 2500 km
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum
- Material of mounting bracket
- high-alloy stainless steel
- Energy chain material
- PA-reinforced
