Festo
8122787

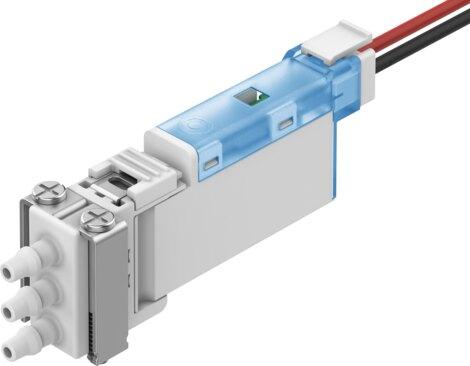

Solenoid valve VOVK-BT6-M32C-MN-5H5ZP-B3.2F
The Festo part number 8122787 is an electrical 3/2-way closed, monostable industrial component featuring a width of 5.9 mm, a nominal width of 0.36 mm, and a normal nominal flow rate of 5.5 l/min. Designed with a poppet valve structure, mechanical spring reset, soft sealing principle, and adjustable exhaust air function, it operates within a pressure range of -1 bar to 7 bar with a maximum switching frequency of 10 Hz and a 6 ms off switching time. This IP40-rated component includes pneumatic working ports for 2 mm inner diameter tubing, front connection direction, and a reversible flow direction with a Cv value of 0.006 Gal/min US. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8122787
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8122787.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 5.9 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 5.5 l/min
- Pneumatic working port
- For tubing I.D. 2 mm
- Operating pressure
- -0.1 MPa...0.7 MPa | -1 bar...7 bar | -14.5 psi...100 psi
- Information on operating pressure
- Operating pressure at port 3: -1 to 0 bar only
- Structural design
- Connection direction to the front | Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- Nominal width
- 0.36 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- Electrical
- Flow direction
- Reversible
- Cv value
- 0.006 Gal/min US
- Max. switching frequency
- 10 Hz
- Switching time off
- 6 ms
- Note on switching time off
- At –1 < p < 6 bar
- On switching time
- 13 ms
- Note on switching time on
- <= 6 ms at 0 < p < 6 bar, <= 13 ms at -1 < p < 0 bar
- Duty cycle
- 100% within 500 h
- Electrical power consumption
- 0.5 W
- Nominal operating voltage DC
- 12 V
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [6:4:1]
- Information on operating and pilot media
- Operation with oil lubrication not possible
