Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

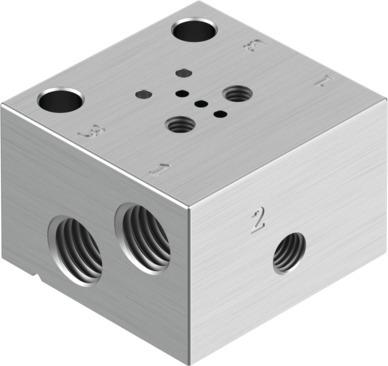

Reference imageConfirm configuration by manufacturer part number.
Festo
8122793
Manifold block VABS-C12-6-B-M3
The Festo 8122793 is a 20 mm industrial component featuring a wrought aluminum alloy manifold rail with a connection direction underneath and a maximum of 1 valve position. Designed for an operating pressure of -0.1 MPa to 0.7 MPa (-1 bar to 7 bar) and compatible with compressed air to ISO 8573-1:2010 [6:4:1] with a maximum particle size of 5 µm, this RoHS-compliant part includes M5 pneumatic connection 1, M3 pneumatic connection 2, and M5 pneumatic connection 3. Weighing 13.5 g with VDMA24364 Zone III LABS conformity, it supports through-hole mounting in any position within an ambient temperature range of 5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8122793
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8122793.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 20 mm
- Mounting position
- Any
- Structural design
- Connection direction underneath
- Max. no. of valve positions
- 1
- Operating pressure
- -0.1 MPa...0.7 MPa | -1 bar...7 bar
- Operating medium
- Compressed air to ISO 8573-1:2010 [6:4:1]
- Information on operating and pilot media
- Maximum particle size 5 µm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 13.5 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M3
- Pneumatic connection 3
- M5
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8122793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
