Festo
8122794

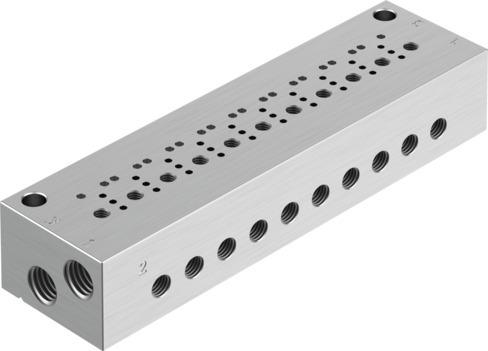

Manifold block VABM-C12-6M-M5-M3-10
The Festo 8122794 is an industrial component featuring a wrought aluminum alloy manifold rail with a width of 20 mm and a structural design providing a connection direction underneath. This part supports a maximum of 10 valve positions, operates at pressures from -0.1 MPa to 0.7 MPa (-1 bar to 7 bar), and accommodates compressed air to ISO 8573-1:2010 [6:4:1] with a maximum particle size of 5 µm. Weighing 49.5 g, the unit includes M5 pneumatic connections 1 and 3, an M3 pneumatic connection 2, through-hole mounting, VDMA24364 Zone III LABS conformity, and RoHS-compliant materials for an ambient temperature range of 5 °C to 50 °C in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8122794
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8122794.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 20 mm
- Mounting position
- Any
- Structural design
- Connection direction underneath
- Max. no. of valve positions
- 10
- Operating pressure
- -0.1 MPa...0.7 MPa | -1 bar...7 bar
- Operating medium
- Compressed air to ISO 8573-1:2010 [6:4:1]
- Information on operating and pilot media
- Maximum particle size 5 µm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 49.5 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M3
- Pneumatic connection 3
- M5
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8122794. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
