Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

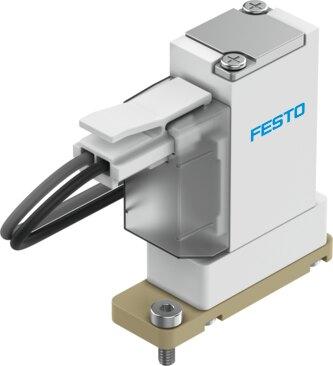

Reference imageConfirm configuration by manufacturer part number.
Festo
8122803
Media separated solenoid valve VYKB-F10-M22C-16-PF-5HPA
The Festo 8122803 is a size 10 industrial component featuring a 2/2-way, closed, monostable valve function with a soft sealing principle and a 1.6 mm nominal width. This directly controlled, electrically actuated rocker valve with a diaphragm seal incorporates FFPM and PEEK media-contacting materials, a non-reversible flow direction, and a side electrical connection utilizing a cable with plug in connection pattern HP. Designed with an internal volume of 35 µl, it accommodates both liquid and gaseous media within a medium temperature range of 0 °C to 50 °C and mounts via a through-hole for an M2 screw in any position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8122803
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8122803.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Electrical connection at side | Rocker valve with diaphragm seal
- Sealing principle
- Soft
- Materials in contact with the media
- FFPM | PEEK
- Valve function
- 2/2-way, closed, monostable
- Nominal width
- 1.6 mm
- Flow direction
- Non-reversible
- Actuation type
- Electrical
- Type of control
- directly
- Reset method
- Mechanical spring
- Manual override
- None
- Mounting position
- Any
- Type of mounting
- With through-hole for M2 screw
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connection technology
- Connection pattern HP
- Size
- 10
- Fluid connector
- Flange
- Medium
- Liquid media | Gaseous media
- Information on medium
- Observe resistance of materials that come into contact with media | Maximum particle size 5 µm
- Internal volume
- 35 µl
- Temperature of medium
- 0 °C...50 °C
- Temperature of liquid media
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Medium pressure
- -0.075 MPa...0.1 MPa | -0.75 bar...1 bar | -10.875 psi...14.5 psi
- Overload pressure
- 0.3 MPa | 3 bar | 43.5 psi
- DC operating voltage range
- 12 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8122803. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
