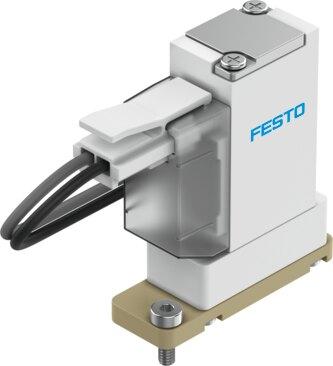

Reference imageConfirm configuration by manufacturer part number.
Festo
8122804
Media separated solenoid valve VYKB-F10-M22C-16-PE-1HPA
The Festo part number 8122804 is an electrical direct-controlled 2/2-way closed monostable rocker valve featuring a soft sealing principle, a diaphragm seal, and a size 10 structural design with side electrical connections via a cable with a plug. Engineered with EPDM and PEEK media-contacting materials, a 1.6 mm nominal width, and a non-reversible flow direction, this component accommodates both liquid and gaseous media within a medium temperature range of 0 °C to 50 °C, subject to media resistance and a maximum particle size of 5 µm. It includes a 35 µl internal volume, a mechanical spring reset method, no manual override, and flange fluid connectors, while supporting mounting via through-holes for M2 screws in any position. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8122804
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8122804.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Electrical connection at side | Rocker valve with diaphragm seal
- Sealing principle
- Soft
- Materials in contact with the media
- EPDM | PEEK
- Valve function
- 2/2-way, closed, monostable
- Nominal width
- 1.6 mm
- Flow direction
- Non-reversible
- Actuation type
- Electrical
- Type of control
- directly
- Reset method
- Mechanical spring
- Manual override
- None
- Mounting position
- Any
- Type of mounting
- With through-hole for M2 screw
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connection technology
- Connection pattern HP
- Size
- 10
- Fluid connector
- Flange
- Medium
- Liquid media | Gaseous media
- Information on medium
- Observe resistance of materials that come into contact with media | Maximum particle size 5 µm
- Internal volume
- 35 µl
- Temperature of medium
- 0 °C...50 °C
- Temperature of liquid media
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Medium pressure
- -0.075 MPa...0.1 MPa | -0.75 bar...1 bar | -10.875 psi...14.5 psi
- Overload pressure
- 0.3 MPa | 3 bar | 43.5 psi
- DC operating voltage range
- 24 V
