Festo
8122832

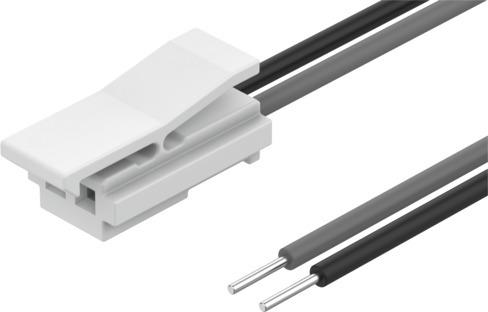

Connecting cable NEBV-HPG2-PN-0.3-N-LE2
The Festo 8122832 is an industrial component weighing 2 g that accommodates a maximum of one solenoid coil with operation restricted to an external power reduction setup. Featuring a square, straight field device side with a 2-pin cable socket utilizing HP connection technology and a push-pull interlock, it connects to a 2x single conductor open-end power supply and control side supporting a DC operating voltage range of 0 V to 24 V without shielding or a label holder. This unshielded unit mounts in any position using its secure locking mechanism. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8122832
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8122832.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of solenoid coils
- 1
- Cable designation
- Without label holder
- Mounting position
- Any
- Product weight
- 2 g
- Electrical connection 1, function
- Field device side | Switching output
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Cable with socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern HP
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- Push-pull with interlock to prevent unintentional pulling
- Electrical connection 2, function
- Power supply | Control side
- Electrical connection 2, connection type
- 2x single conductor
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 0 V...24 V
- Shield
- No
- Information on operation
- Only operate with external power reduction
- Cable length
- 0.3 m
- Cable characteristic
- For static applications
- Bending radius, xed cable installation
- 11 mm
- Cable diameter
- 0.96 mm
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8122832. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
