Festo
8123494

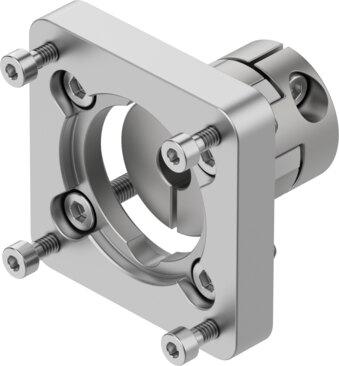

Axial kit EAMM-A-P6-38A-58AA
The Festo part number 8123494 is an industrial component with a nominal length of 10.6 mm, a product weight of 133 g, and RoHS-compliant materials featuring VDMA24364-B2-L LABS conformity. This unit operates at a maximum rotational speed of 8000 rpm, delivering a transferable torque of 6.5 Nm and a mass moment of inertia of 5.87 kgmm² across any mounting position. Rated to IP40 protection, it functions within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and relative air humidity from 0 to 95%, utilizing interface codes P6-38A for the actuator, 58AA for the motor in, and 38A for the coupling housing. Submit part number 8123494, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8123494
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8123494.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 10.6 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 133 g
- Interface code, actuator
- P6-38A
- Interface code, motor in
- 58AA
- Interface code, coupling housing
- 38A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8123494. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
