Festo
8123495

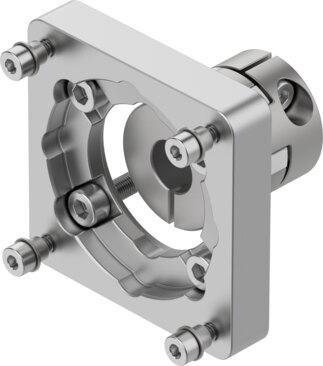

Axial kit EAMM-A-P6-38A-60R
The Festo part number 8123495 is an industrial component featuring a nominal length of 11.8 mm, a mass moment of inertia of 5.87 kgmm², and a transferable torque of 6.5 Nm with a maximum rotational speed of 8000 rpm. This RoHS compliant unit incorporates actuator interface code P6-38A, motor input interface code 60R, and coupling housing interface code 38A, while supporting any mounting position and providing an IP40 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C and storage temperatures from -25 °C to 60 °C, the 210 g device maintains VDMA24364-B2-L LABS conformity and 0 to 95% relative air humidity tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8123495
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8123495.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 11.8 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 210 g
- Interface code, actuator
- P6-38A
- Interface code, motor in
- 60R
- Interface code, coupling housing
- 38A
- Note on materials
- RoHS compliant
