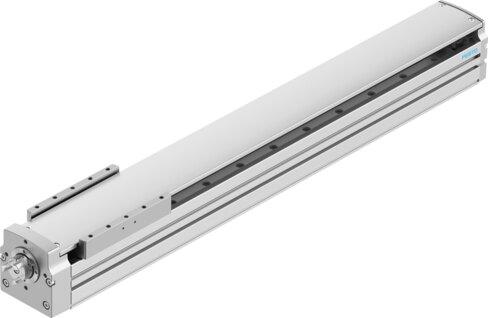

Name: Festo 8124411 Ball screw axis ELGT-BS-90-550-10P
Brand: Festo

Ball screw axis ELGT-BS-90-550-10P

The Festo electromechanical linear axis, part number 8124411, features a size 90 structural design with a 550 mm working stroke, 0 mm stroke reserve, and a ball screw spindle type driven by either a stepper or servo motor. Built with a recirculating ball bearing guide, 16 mm screw diameter, and 10 mm/U spindle pitch, this unit delivers a maximum speed of 0.5 m/s, a maximum rotational speed of 3000 rpm, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.02 mm with 150 µm reversing backlash for a 100% duty cycle in any mounting position. Compliant with VDMA24364 Zone III LABS conformity and ISO 14644-1 Class 6 cleanroom standards, it meets reduced Cu/Zn/Ni values for Li-ion battery production while excluding specified metals by mass. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8124411
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8124411.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 550 mm
Size: 90
Stroke reserve: 0 mm
Reversing backlash: 150 µm
Screw diameter: 16 mm
Spindle pitch: 10 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Max. acceleration: 15 m/s²
Max. rotational speed: 3000 rpm
Max. speed: 0.5 m/s
Repetition accuracy: ±0.02 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Degree of protection: IP20
Ambient temperature: 0 °C...50 °C
Continuous feed force: 1054 N
2nd moment of area Iy: 631000 mm⁴
2nd moment of area Iz: 1948000 mm⁴
No-load torque at maximum travel speed: 0.3 Nm
No-load torque at minimum travel speed: 0.08 Nm
Max. force Fy: 4710 N
