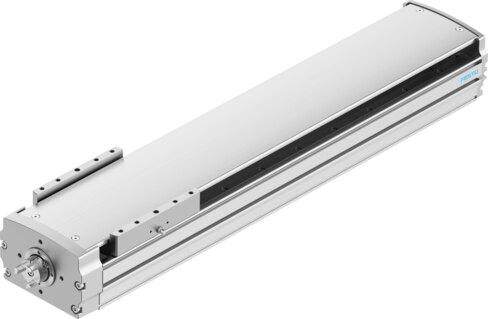

Name: Festo 8124454 Ball screw axis ELGT-BS-120-450-10P
Brand: Festo

Ball screw axis ELGT-BS-120-450-10P

The Festo 8124454 is an electromechanical linear axis featuring a ball screw with a 16 mm screw diameter, a 10 mm/U spindle pitch, and a 450 mm working stroke. Designed with a recirculating ball bearing guide and a reversing backlash of 150 µm, this size 120 component supports any mounting position, a 100% duty cycle, and compatible stepper or servo motors delivering a maximum acceleration of 15 m/s², a maximum rotational speed of 3000 rpm, a maximum speed of 0.5 m/s, and a repetition accuracy of ±0.02 mm. It complies with VDMA24364 Zone III LABS conformity, meets ISO 14644-1 Class 8 cleanroom standards, and is suitable for lithium-ion battery production with reduced Cu/Zn/Ni values, excluding certain metals by mass while permitting nickel in steel and chemically nickel-plated surfaces. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8124454
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8124454.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 450 mm
Size: 120
Stroke reserve: 0 mm
Reversing backlash: 150 µm
Screw diameter: 16 mm
Spindle pitch: 10 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Max. acceleration: 15 m/s²
Max. rotational speed: 3000 rpm
Max. speed: 0.5 m/s
Repetition accuracy: ±0.02 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 8 according to ISO 14644-1
Degree of protection: IP20
Ambient temperature: 0 °C...50 °C
Continuous feed force: 1265 N
2nd moment of area Iy: 966000 mm⁴
2nd moment of area Iz: 6011000 mm⁴
No-load torque at maximum travel speed: 0.3 Nm
No-load torque at minimum travel speed: 0.08 Nm
Max. force Fy: 6800 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8124454. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
