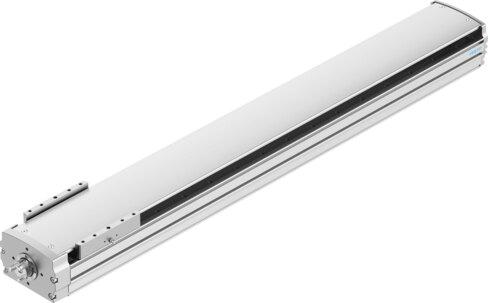

Reference imageConfirm configuration by manufacturer part number.
Festo
8124461
Ball screw axis ELGT-BS-120-800-10P
The Festo 8124461 is an electromechanical linear axis featuring a ball screw with an 800 mm working stroke, a 16 mm screw diameter, and a 10 mm/U spindle pitch. It accommodates either a stepper motor or a servo motor in any mounting position, delivering a maximum speed of 0.5 m/s, a maximum rotational speed of 3000 rpm, and a maximum acceleration of 15 m/s² with a 100% duty cycle. This size 120 unit incorporates a recirculating ball bearing guide, achieves a repetition accuracy of ±0.02 mm with a 150 µm reversing backlash, and meets ISO 14644-1 Class 8 cleanroom standards alongside VDMA24364 Zone III LABS conformity with reduced copper, zinc, and nickel content for Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8124461
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8124461.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 800 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Reversing backlash
- 150 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 3000 rpm
- Max. speed
- 0.5 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 8 according to ISO 14644-1
- Degree of protection
- IP20
- Ambient temperature
- 0 °C...50 °C
- Continuous feed force
- 1265 N
- 2nd moment of area Iy
- 966000 mm⁴
- 2nd moment of area Iz
- 6011000 mm⁴
- No-load torque at maximum travel speed
- 0.3 Nm
- No-load torque at minimum travel speed
- 0.08 Nm
- Max. force Fy
- 6800 N
