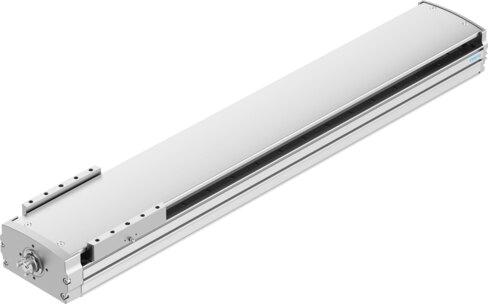

Name: Festo 8124536 Ball screw axis ELGT-BS-160-800-20P
Brand: Festo

Ball screw axis ELGT-BS-160-800-20P

The Festo 8124536 is an electromechanical linear axis featuring a ball screw with a 20 mm screw diameter, 20 mm/U spindle pitch, and an 800 mm working stroke driven by a stepper or servo motor. This unit incorporates a recirculating ball bearing guide, supports any mounting position, and delivers a maximum speed of 1 m/s, maximum acceleration of 15 m/s², and repetition accuracy of ±0.02 mm with a 100% duty cycle. Certified to VDMA24364 Zone III for LABS conformity and ISO 14644-1 Class 8 for cleanroom use, the component is suitable for Li-ion battery production under restricted Cu/Zn/Ni material variants. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8124536
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8124536.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 800 mm
Size: 160
Stroke reserve: 0 mm
Reversing backlash: 150 µm
Screw diameter: 20 mm
Spindle pitch: 20 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Max. acceleration: 15 m/s²
Max. rotational speed: 3000 rpm
Max. speed: 1 m/s
Repetition accuracy: ±0.02 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 8 according to ISO 14644-1
Degree of protection: IP20
Ambient temperature: 0 °C...50 °C
Continuous feed force: 1045 N
2nd moment of area Iy: 1411000 mm⁴
2nd moment of area Iz: 15257000 mm⁴
No-load torque at maximum travel speed: 0.4 Nm
No-load torque at minimum travel speed: 0.14 Nm
Max. force Fy: 9550 N
