Festo
8126174

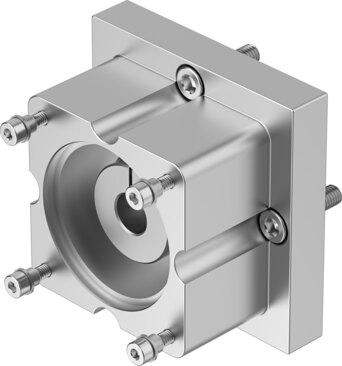

Axial kit EAMM-A-T46-60R
This Festo industrial component, part number 8126174, features a nominal length of 47 mm, a product weight of 398 g, and a mass moment of inertia of 3.2 kgmm². The unit operates at a max rotational speed of 8000 rpm with a transferable torque of 10 Nm, utilizing actuator interface code T46 and motor interface code 60R. Built with RoHS-compliant materials and VDMA24364-B2-L LABS conformity, it provides IP40 protection for any mounting position within an ambient temperature range of -10 °C to 60 °C, relative air humidity of 0 to 95%, and storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8126174
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8126174.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 47 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 10 Nm
- Product weight
- 398 g
- Interface code, actuator
- T46
- Interface code, motor in
- 60R
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8126174. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
