Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8126175

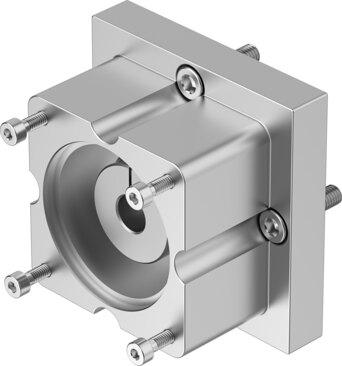

Axial kit EAMM-A-T46-60RA
Engineered by Festo, part number 8126175 is an industrial component featuring a nominal length of 47 mm, a product weight of 399 g, and a mass moment of inertia of 3.2 kgmm². This RoHS-compliant device accommodates a maximum rotational speed of 8000 rpm, a transferable torque of 10 Nm, actuator interface code T46, and motor-in interface code 60RA with IP40 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C and storage temperatures from -25 °C to 60 °C, it adheres to VDMA24364-B2-L LABS conformity across 0 to 95% relative air humidity in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8126175
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8126175.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 47 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 10 Nm
- Product weight
- 399 g
- Interface code, actuator
- T46
- Interface code, motor in
- 60RA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8126175. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
