Festo
8126417

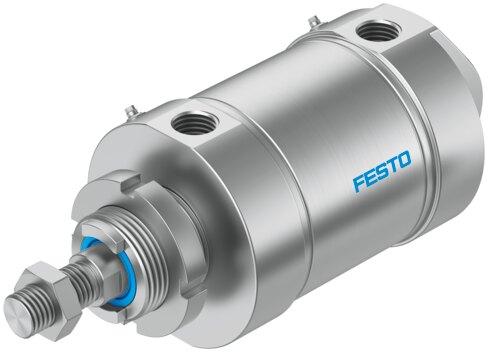

Round cylinder CRDSNU-100
The Festo 8126417 is a double-acting industrial component featuring a 100 mm piston diameter, an adjustable stroke ranging from 1 mm to 500 mm, and an operating pressure of 0.1 MPa to 1 MPa. Constructed with a piston, piston rod, and cylinder barrel, this unit supports any mounting position and incorporates position sensing via proximity switch alongside configurable cushioning and piston rod ends. Certified for use in hazardous environments, it carries ATEX and UKCA markings for Zone 1, Zone 2, Zone 21, and Zone 22, fulfilling EPL Gb (GB) and EPL Db (GB) explosion protection certifications outside the EU. Submit the exact part number, quantity, and application requirements to request a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8126417
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8126417.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...500 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5 | M12
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- For unlubricated operation | EX protection approval (ATEX) | Increased chemical resistance | Extended external thread piston rod | Internal thread on piston rod | Special thread on piston rod | Extended piston rod | Bearing cover without mounting thread | Lateral supply port | Through piston rod | Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8126417. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
