Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

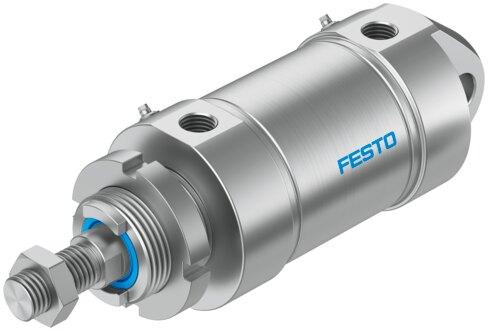

Reference imageConfirm configuration by manufacturer part number.
Festo
8126418
Round cylinder CRDSNU-80
This double-acting industrial component from Festo features an 80 mm piston diameter, an adjustable operating pressure range of 0.1 MPa to 1 MPa, and a stroke length spanning from 1 mm to 500 mm. Built with structural elements including a piston, piston rod, and cylinder barrel, the unit supports position sensing via proximity switches and incorporates adjustable pneumatic end-position cushioning alongside elastic cushioning rings. The model holds ATEX and UKCA certifications for explosive atmospheres, permitting operation in Zone 1, Zone 2, Zone 21, and Zone 22 environments with II 2G gas protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8126418
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8126418.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...500 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5 | M12
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- For unlubricated operation | EX protection approval (ATEX) | Increased chemical resistance | Extended external thread piston rod | Internal thread on piston rod | Special thread on piston rod | Extended piston rod | Bearing cover without mounting thread | Lateral supply port | Through piston rod | Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8126418. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
