Festo
8126916
Connecting cable NEBC-R3Z12G20-KH-5-N-SBS-RSG17-ET-S1
Manufactured by Festo, this industrial component (Part Number: 8126916) weighs 680 g and operates within a DC voltage range of 0 V to 24 V with a nominal operating voltage of 24 V and a current rating of 11.7 A at 40° C. The field device side features a straight square plug and socket strip with RJ45 and socket strip connection technology, 20 pins (14 occupied), a screw-type lock, and no label holder, while the control side incorporates a straight round hybrid plug with 17 pins (14 occupied) and a screwed mounting type. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8126916
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8126916.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Product weight
- 680 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug and socket strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

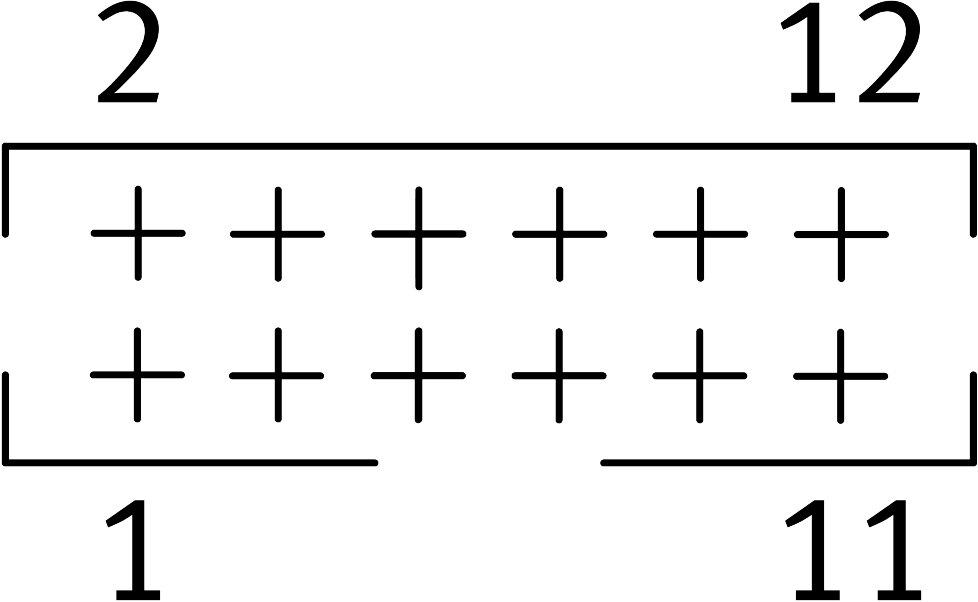

- RJ45 and socket strip, 12 pins, 2 rows
- Electrical connection 1, number of pins/wires
- 20
- Electrical connection 1, occupied pins/wires
- 14
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Hybrid plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, number of pins/wires
- 17
- Electrical connection 2, occupied pins/wires
- 14
- Electrical connection 2, type of mounting
- Screwed
- DC operating voltage range
- 0 V...24 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 11.7 A
- Surge resistance
- 6 kV
- Shield
- No
- Cable length
- 5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 130 mm
- Bending radius, exible cable installation
- 130 mm
- Cable diameter
- 8 mm
- Cable diameter tolerance
- ± 1 mm
- Cable design
- 4 x (1 x 0.128 mm²) + 10 x 0.128 mm²
- Nominal conductor cross section
- 0.128 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8126916. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
