Festo
8126918
Connecting cable NEBC-R3Z12G20-KH-15-N-SBS-RSG17-ET-S1
Festo Connecting cable NEBC-R3Z12G20-KH-15-N-SBS-RSG17-ET-S1, part number 8126918, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8126918
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8126918.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Cable designation
- Without label holder
- Product weight
- 1900 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug and socket strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

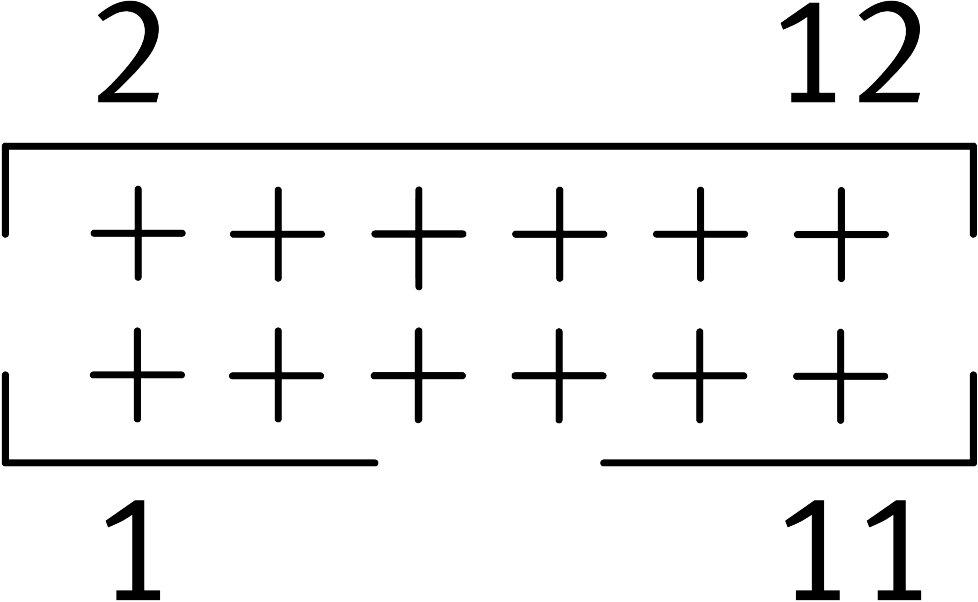

- RJ45 and socket strip, 12 pins, 2 rows
- Electrical connection 1, number of pins/wires
- 20
- Electrical connection 1, occupied pins/wires
- 14
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Hybrid plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, number of pins/wires
- 17
- Electrical connection 2, occupied pins/wires
- 14
- Electrical connection 2, type of mounting
- Screwed
- DC operating voltage range
- 0 V...24 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 11.7 A
- Surge resistance
- 6 kV
- Shield
- No
- Cable length
- 15 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 130 mm
- Bending radius, exible cable installation
- 130 mm
- Cable diameter
- 8 mm
- Cable diameter tolerance
- ± 1 mm
- Cable design
- 4 x (1 x 0.128 mm²) + 10 x 0.128 mm²
- Nominal conductor cross section
- 0.128 mm²
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8126918. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
