Festo
8128213

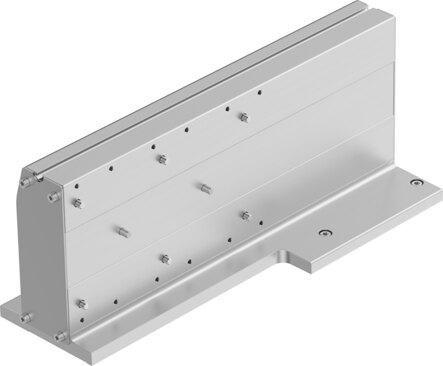

Angle kit EHAM-AK-L9-120-L9-120-MR
The Festo 8128213 is a standard-design industrial component sized at 120 with a right-hand mounting position and an anodized aluminum adapter plate. Weighing 5313 g, it incorporates a base and layout interface code of L9-120, steel nickel-plated screws, and high-alloy steel centering elements. This RoHS-compliant assembly features VDMA24364-B2-L LABS conformity, a CRC rating of 0 for environments with no corrosion stress, and an operational ambient temperature range of -10 °C to 80 °C. It is configured for installation via through-hole and screw mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8128213
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8128213.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 120
- Mounting position
- right hand
- Structural design
- Standard design
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 5313 g
- Type of mounting
- With through-hole and screw
- Interface code, base
- L9-120
- Interface code, layout
- L9-120
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum
- Material of screws
- Steel, nickel-plated
- Material of centering elements
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8128213. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
