Festo
8128472

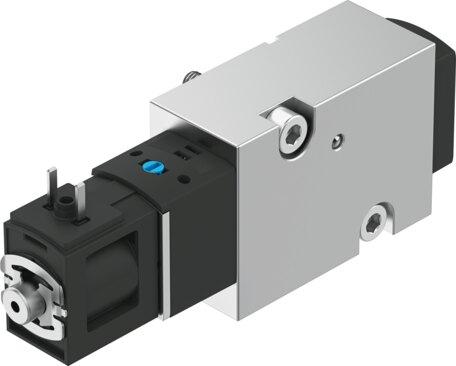

Solenoid valve VSNC-FK-M52-RD-G18-1C1-S
The Festo 8128472 is a 25.5 mm wide electrical industrial component featuring a 5/2-way monostable valve function with a piston slide structural design and soft sealing principle. This piloted device operates at 24V DC within an operating pressure range of 0.25 MPa to 0.8 MPa and delivers a normal nominal flow rate of 400 l/min through a NAMUR connection pattern working port. Equipped with an internal pilot air supply port, adjustable exhaust air function, and an IP65 degree of protection, it conforms to the VDI/VDE 3845 standard and utilizes both mechanical and pneumatic spring reset methods with a detenting manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8128472
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8128472.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 25.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring | Pneumatic spring
- Degree of protection
- IP65
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.3
- C value
- 2.1 l/sbar
- Standard nominal ow rate, exhaust air return 4->3
- 100 l/min
- Switching time off
- 50 ms
- On switching time
- 50 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 2.4 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8128472. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
