Festo
8128473

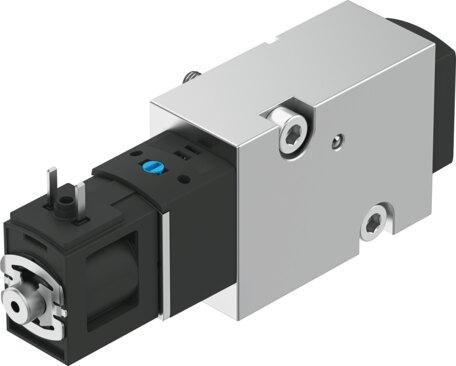

Solenoid valve VSNC-FKA-M52-RD-G18-1C1-S
The Festo 8128473 is a 5/2-way monostable industrial component featuring electrical actuation, a 25.5 mm width, and a normal nominal flow rate of 400 l/min normalized to DIN 1343. Operating on 24V DC within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar), this piloted piston slide valve incorporates a soft sealing principle, internal pilot air supply, and a NAMUR connection pattern conforming to VDI/VDE 3845 standards. It includes a detenting manual override, mechanical and pneumatic spring reset methods, an adjustable exhaust air function, and an IP65 degree of protection for mounting in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8128473
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8128473.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable | Connections swapped
- Actuation type
- Electrical
- Width
- 25.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring | Pneumatic spring
- Degree of protection
- IP65
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.3
- C value
- 2.1 l/sbar
- Standard nominal ow rate, exhaust air return 4->3
- 100 l/min
- Switching time off
- 50 ms
- On switching time
- 50 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 2.4 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8128473. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
