Festo
8129108

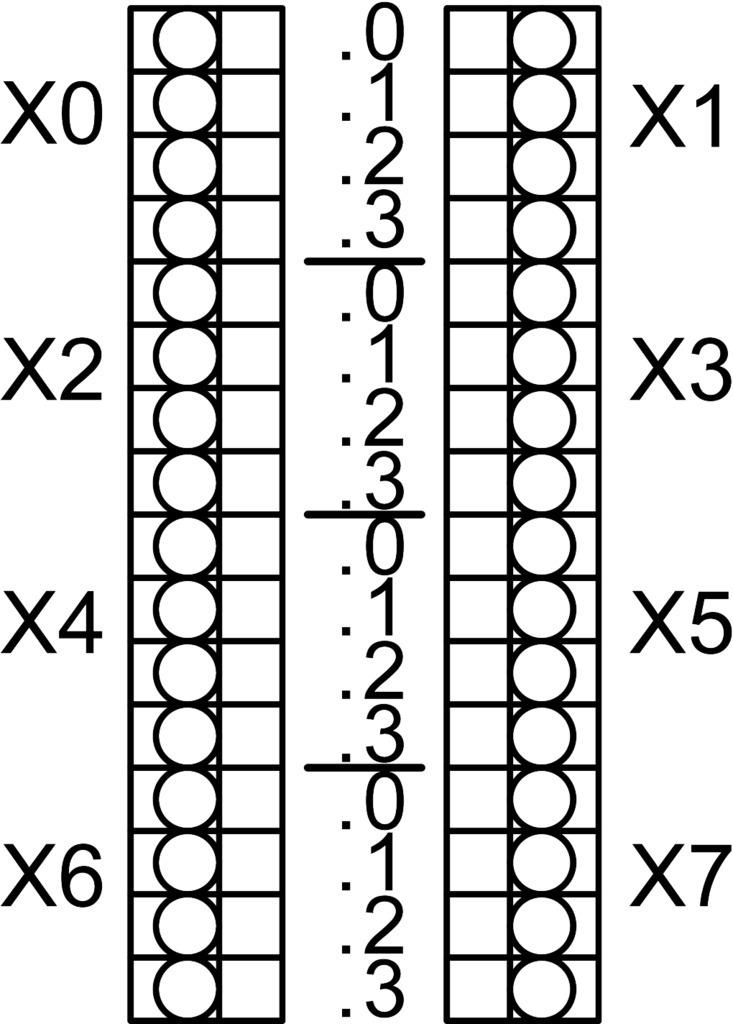

Digital input/output module CPX-AP-A-12DI4DO-PI
The Festo industrial component, part number 8129108, measures 50.1 mm in width, 107.3 mm in length, and 57.5 mm in height including the interlinking block, with a product weight of 97 g and screwed-on mounting suitable for any position. It operates within an ambient temperature range of -20 °C to 50 °C subject to IEC 61131-2:2017 derating, supports a maximum installation height of 3500 m, and features a UL94 V-0 housing material that is RoHS compliant, halogen-free, and free of phosphoric acid esters. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8129108
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8129108.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block) | 50.1 mm x 107.3 mm x 57.5 mm
- Width dimension
- 50.1 mm
- Type of mounting
- Screwed on
- Product weight
- 97 g
- Mounting position
- Any
- Ambient temperature
- -20 °C...50 °C
- Note on ambient temperature
- Observe ambient temperature derating according to IEC 61131-2:2017
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Max. installation height
- 3500 m
- Information on max. installation height
- > 2000 m ASL (< 79.5 kPa) | Observe ambient temperature derating according to IEC 61131-2:2017
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Note on vibration resistance
- SG1 for DIN rail | SG2 on direct mounting | Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Overvoltage category
- II
- Max. cable length
- 30 m outputs
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Material re test
- UL94 V-0 (housing)
- Note on materials
- RoHS compliant | Halogen-free | Contains no phosphoric acid esters
- O-ring material
- FPM
