Festo
8129130

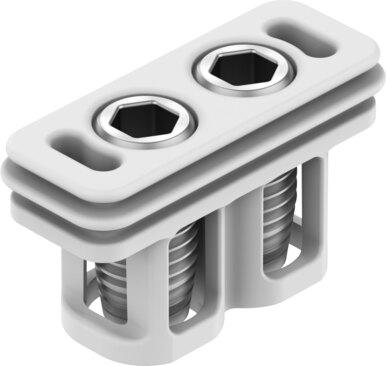

Flow control -SET VMPA2-FT-NW0.3-1.7
The Festo part number 8129130 is an industrial component featuring a flow control function, sub-base pneumatic connection 1, and a clamped mounting type with a size of 20. It operates within a pressure range of -0.09 bar to 1 bar, handles a standard nominal flow rate from 3.5 l/min to 115 l/min, and functions across ambient and medium temperatures of -5 °C to 60 °C with a nominal width of 0.3 mm to 1.7 mm. Constructed with a POM retainer bracket and a wrought aluminum alloy hollow bolt, the 0.7 g RoHS-compliant unit operates on compressed air per ISO 8573-1:2010 [7:4:4] and is supplied in a pack size of 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8129130
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8129130.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- Sub-base
- Type of mounting
- Clamped
- Standard nominal ow rate in ow control direction
- 3.5 l/min...115 l/min
- Operating pressure
- -0.09 bar...1 bar | -0.09 bar...1 bar
- Ambient temperature
- -5 °C...60 °C
- Size
- 20
- Nominal width
- 0.3 mm...1.7 mm
- Mounting position
- Any
- Pack size
- 2
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...40 °C
- Temperature of medium
- -5 °C...60 °C
- Product weight
- 0.7 g
- Note on materials
- RoHS compliant
- Retainer bracket material
- POM
- Hollow bolt material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8129130. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
