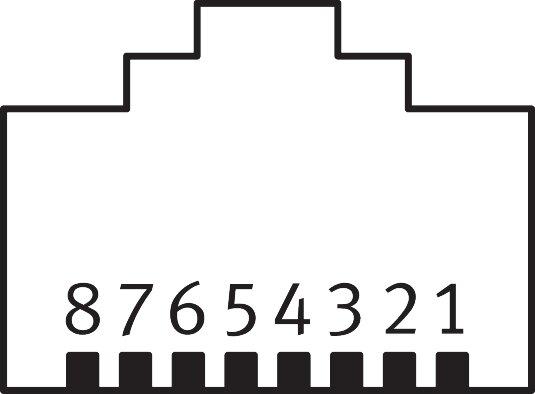

Reference imageConfirm configuration by manufacturer part number.
Festo
8129245
PROFINET Interface CPX-AP-A-PN-CU
The Festo 8129245 industrial component features dimensions of 50.1 mm x 107.3 mm x 94.2 mm including the interlinking block, a width of 50.1 mm, and a product weight of 167 g with screwed-on mounting in any position. It operates within an ambient temperature of -20 °C to 50 °C subject to IEC 61131-2:2017 derating, supports up to 80 modules, and achieves protection class III with a contamination level of 2 under low corrosion stress (CRC 1). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8129245
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8129245.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block) | 50.1 mm x 107.3 mm x 94.2 mm
- Width dimension
- 50.1 mm
- Type of mounting
- Screwed on
- Max. number of modules
- 80
- Product weight
- 167 g
- Mounting position
- Any
- Ambient temperature
- -20 °C...50 °C
- Note on ambient temperature
- Observe ambient temperature derating according to IEC 61131-2:2017
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Nominal altitude of use above sea level
- <= 2000 m ASL (> 79.5 kPa)
- Max. installation height
- 3500 m
- Information on max. installation height
- > 2000 m ASL (< 79.5 kPa) | Observe ambient temperature derating according to IEC 61131-2:2017
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Note on vibration resistance
- SG1 for DIN rail | SG2 on direct mounting | Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Note on shock resistance
- 30 g/11 ms as per EN 60068-2-27 | SG1 on DIN rail | SG2 on direct mounting | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Protection class
- III
- Contamination level
- 2
- Overvoltage category
- II
- Max. cable length
- 100 m PROFINET
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Material re test
- UL94 V-0 (housing)
