Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

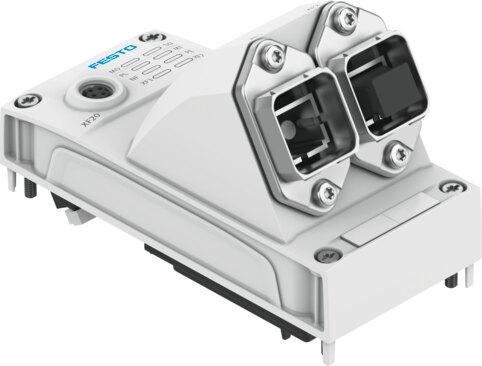

Reference imageConfirm configuration by manufacturer part number.
Festo
8129246
PROFINET Interface CPX-AP-A-PN-FO
Engineered by Festo with part number 8129246, this industrial component measures 50.1 mm in width, 107.3 mm in length, and 94.2 mm in height including its interlinking block, and weighs 182 g. It supports up to 80 modules, features screwed-on mounting for any position, and operates within an ambient temperature range of -20 °C to 50 °C under protection class III. The unit is rated for a maximum installation height of 3500 m, storage temperatures from -20 °C to 70 °C, and relative air humidity between 5% and 95% non-condensating. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8129246
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8129246.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block) | 50.1 mm x 107.3 mm x 94.2 mm
- Width dimension
- 50.1 mm
- Type of mounting
- Screwed on
- Max. number of modules
- 80
- Product weight
- 182 g
- Mounting position
- Any
- Ambient temperature
- -20 °C...50 °C
- Note on ambient temperature
- Observe ambient temperature derating according to IEC 61131-2:2017
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Nominal altitude of use above sea level
- <= 2000 m ASL (> 79.5 kPa)
- Max. installation height
- 3500 m
- Information on max. installation height
- > 2000 m ASL (< 79.5 kPa) | Observe ambient temperature derating according to IEC 61131-2:2017
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Note on vibration resistance
- SG1 for DIN rail | SG2 on direct mounting | Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Note on shock resistance
- 30 g/11 ms as per EN 60068-2-27 | SG1 on DIN rail | SG2 on direct mounting | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Protection class
- III
- Contamination level
- 2
- Overvoltage category
- II
- Max. cable length
- 50 m PROFINET
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8129246. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
