Name: Festo 8129251 Interlinking module CPX-AP-A-SB
Brand: Festo

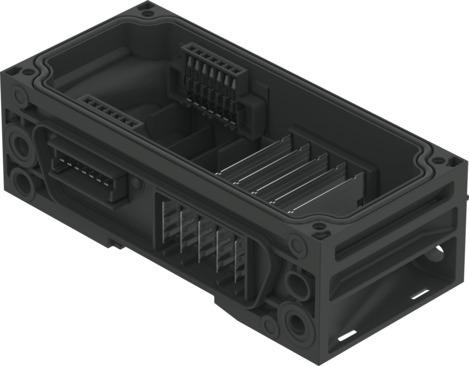

Interlinking module CPX-AP-A-SB

The Festo part number 8129251 is an industrial component featuring installation dimensions of 50.1 mm in width, 107.3 mm in length, and 35 mm in height, with a product weight of 97 g. This unit offers mounting flexibility on an H-rail with accessories or via through-holes for M5 and M6 screws, supporting an arbitrary mounting position and horizontal orientation on H-rails within an ambient temperature range of -20 °C to 50 °C. It provides class III protection, overvoltage category II, and low corrosion stress resistance (CRC 1) while operating up to 2000 m above sea level. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8129251
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8129251.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (installation dimensions) | 50.1 mm x 107.3 mm x 35 mm
Width dimension: 50.1 mm
Type of mounting: On H-rail with accessories | with through-hole for M5 screw with accessories | with through-hole for M6 screw with accessories
Product weight: 97 g
Mounting position: Arbitrary, on H-rail: horizontal
Ambient temperature: -20 °C...50 °C
Note on ambient temperature: Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature: -20 °C...70 °C
Relative air humidity: 5 - 95% | Non-condensating
Nominal altitude of use above sea level: <= 2000 m ASL (> 79.5 kPa)
Max. installation height: 3500 m
Information on max. installation height: > 2000 m ASL (< 79.5 kPa) | Observe ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class (CRC): 1 - Low corrosion stress
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Note on vibration resistance: SG1 for DIN rail | SG2 on direct mounting | Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Note on shock resistance: 30 g/11 ms as per EN 60068-2-27 | SG1 on DIN rail | SG2 on direct mounting | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Protection class: III
Overvoltage category: II
LABS (PWIS) conformity: VDMA24364-B2-L
Material re test: UL94 V-0 (housing)
Note on materials: RoHS compliant | Halogen-free

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8129251. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
