Festo
8129257

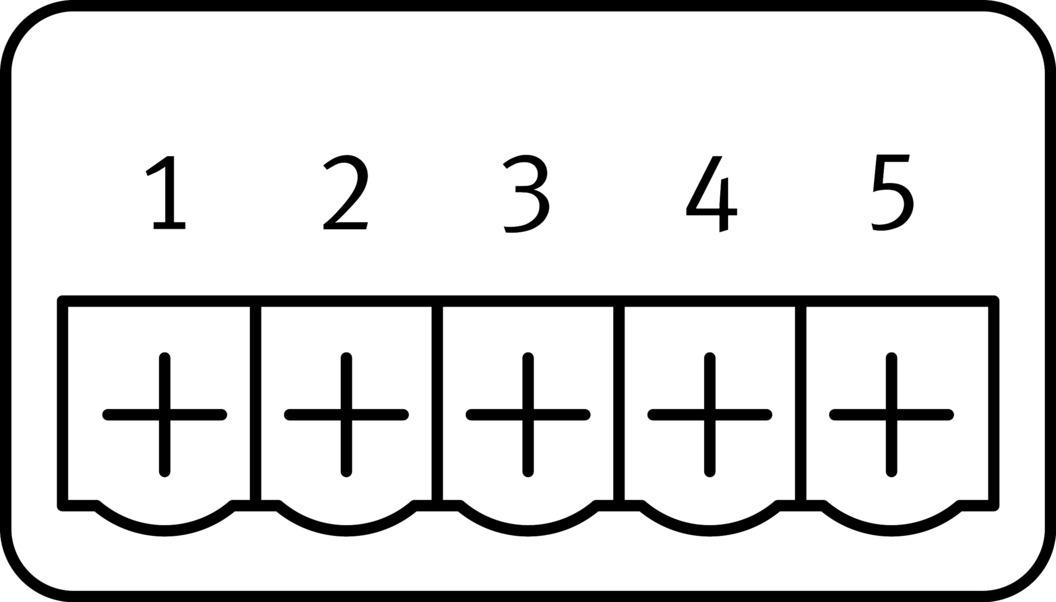

Additional supply CPX-AP-A-AR-1-PP-5P
The Festo 8129257 is an industrial component measuring 50.1 mm in width, 153 mm in length, and 45.6 mm in height, with a product weight of 177 g. It features an arbitrary mounting position and can be installed on an H-rail with accessories or via through-holes for M5 and M6 screws with accessories. The unit operates in ambient temperatures from -20 °C to 50 °C subject to IEC 61131-2:2017 derating, withstands up to 95% non-condensating relative humidity, and achieves protection class III with a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8129257
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8129257.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (installation dimensions) | 50.1 mm x 153 mm x 45.6 mm
- Width dimension
- 50.1 mm
- Type of mounting
- On H-rail with accessories | with through-hole for M5 screw with accessories | with through-hole for M6 screw with accessories
- Product weight
- 177 g
- Mounting position
- Arbitrary, on H-rail: horizontal
- Ambient temperature
- -20 °C...50 °C
- Note on ambient temperature
- Observe ambient temperature derating according to IEC 61131-2:2017
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Nominal altitude of use above sea level
- <= 2000 m ASL (> 79.5 kPa)
- Max. installation height
- 3500 m
- Information on max. installation height
- > 2000 m ASL (< 79.5 kPa) | Observe ambient temperature derating according to IEC 61131-2:2017
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Note on vibration resistance
- SG1 for DIN rail | SG2 on direct mounting | Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Note on shock resistance
- 30 g/11 ms as per EN 60068-2-27 | SG1 on DIN rail | SG2 on direct mounting | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Protection class
- III
- Overvoltage category
- II
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Material re test
- UL94 V-0 (housing)
- Note on materials
- RoHS compliant | Halogen-free
